Static Analysis: PE Structure & Strings

Why Static Analysis Comes First

When a suspicious file lands on your desk — pulled from a quarantine folder, extracted from a phishing email, or flagged by Wazuh — you face a critical decision: do you run it, or do you read it?

Static analysis means examining a binary without executing it. You inspect its structure, read its strings, examine its imports, check its metadata — all without letting it touch a running system. This is always the first step because it is safe, repeatable, and often reveals enough to classify a sample before you ever need a sandbox.

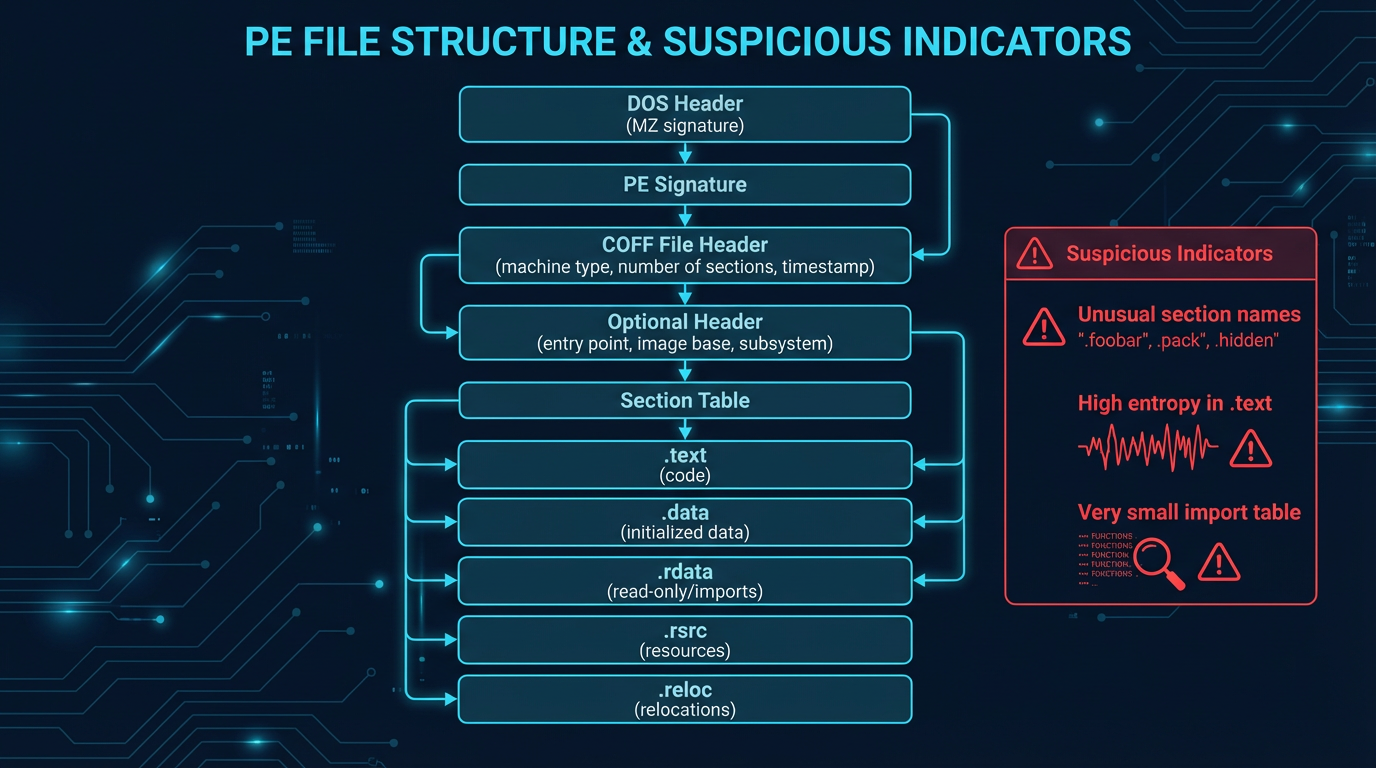

The PE File Format: Windows Executables Under the Microscope

Every .exe, .dll, .sys, and .scr file on Windows follows the Portable Executable (PE) format. Understanding PE structure is fundamental because malware authors must work within this format — and every shortcut they take leaves artifacts you can detect.

Click to enlarge

DOS Header and DOS Stub

Every PE file begins with the DOS header, a legacy artifact from MS-DOS compatibility. The first two bytes are always 4D 5A (the ASCII characters "MZ" — named after Mark Zbikowski, a DOS architect). This magic number is how the operating system and analysis tools recognize a file as a PE executable.

The DOS header contains one critical field for analysts: e_lfanew — a 4-byte offset at position 0x3C that points to the PE header's location. Malware authors occasionally manipulate this value to confuse basic parsers.

Following the DOS header is the DOS stub — a small program that prints "This program cannot be run in DOS mode" if someone tries to run the executable in a DOS environment. Some malware replaces this stub with custom messages or junk data.

00000000  4D 5A 90 00 03 00 00 00  04 00 00 00 FF FF 00 00  |MZ..............|
00000010  B8 00 00 00 00 00 00 00  40 00 00 00 00 00 00 00  |........@.......|
00000020  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00000030  00 00 00 00 00 00 00 00  00 00 00 00 E0 00 00 00  |................|

PE Header (IMAGE_NT_HEADERS)

The PE header starts with the signature 50 45 00 00 ("PE\0\0") and contains two sub-structures:

File Header (COFF Header) — 20 bytes of critical metadata:

Optional Header — despite the name, it is mandatory for executables:

Section Table and Common Sections

After the PE header comes the section table — an array of headers describing each section in the binary. Every section has a name, virtual address, virtual size, raw size, and characteristics flags.

Entry Point Analysis

The AddressOfEntryPoint field tells the OS where to start executing code. In legitimate software, this points into the .text section. Anomalies to watch for:

• Entry point in a non-standard section (not .text) — suggests packing or injection
• Entry point at the very end of a section — common in appended shellcode
• Entry point at offset 0 of a section with high entropy — likely packed or encrypted
• Entry point in a section with a suspicious name (UPX1, .packed, random characters)

Extracting and Analyzing Strings

Strings are the single most productive static analysis technique for initial triage. Embedded text in a binary reveals what the malware communicates with, what it modifies, and what tools or techniques it uses.

The strings Command

On Linux, the strings command extracts printable ASCII sequences of a minimum length (default 4 characters):

strings suspicious.exe | head -50

strings -n 8 suspicious.exe     # minimum 8 characters (reduces noise)

strings -e l suspicious.exe     # extract UTF-16LE strings (common in Windows binaries)

On Windows, Sysinternals strings.exe provides equivalent functionality:

strings64.exe -n 8 suspicious.exe

strings64.exe -accepteula suspicious.exe | Select-String -Pattern "http"

FLOSS: Beyond Basic Strings

The FLARE Obfuscated String Solver (FLOSS) from Mandiant goes far beyond strings. It uses static analysis techniques to automatically deobfuscate strings that malware encrypts or encodes at compile time:

floss suspicious.exe

floss --no stack_strings suspicious.exe     # skip stack strings for faster results

floss -o floss_output.json suspicious.exe   # JSON output for scripting

Suspicious String Categories

When reviewing extracted strings, categorize them systematically:

Network Indicators:

• URLs: http://, https://, ftp://
• IP addresses: 192.168., 10.0., or public IPs
• Domain names: especially DGA-looking domains (xkjr2.duckdns.org)
• User-Agent strings: Mozilla/5.0, custom agents

File System Indicators:

• Windows paths: C:\\Users\\, C:\\Windows\\Temp\\, %APPDATA%
• Linux paths: /tmp/, /etc/cron.d/, /var/log/
• File extensions: .bat, .ps1, .vbs, .dll
• Known malware drop locations: C:\\ProgramData\\, C:\\Users\\Public\\

Windows API Calls:

• Process manipulation: CreateRemoteThread, VirtualAllocEx, WriteProcessMemory
• Execution: WinExec, ShellExecute, CreateProcess
• Network: InternetOpen, URLDownloadToFile, HttpSendRequest
• Registry: RegSetValueEx, RegCreateKey
• Crypto: CryptEncrypt, CryptDecrypt, BCryptEncrypt

Persistence Indicators:

• Registry keys: SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Run
• Service creation: CreateService, sc create
• Scheduled tasks: schtasks, at.exe

Encoded / Obfuscated Data:

• Base64 strings: long alphanumeric sequences ending in = or ==
• Hex-encoded data: continuous hex characters
• XOR keys: short repeated byte sequences

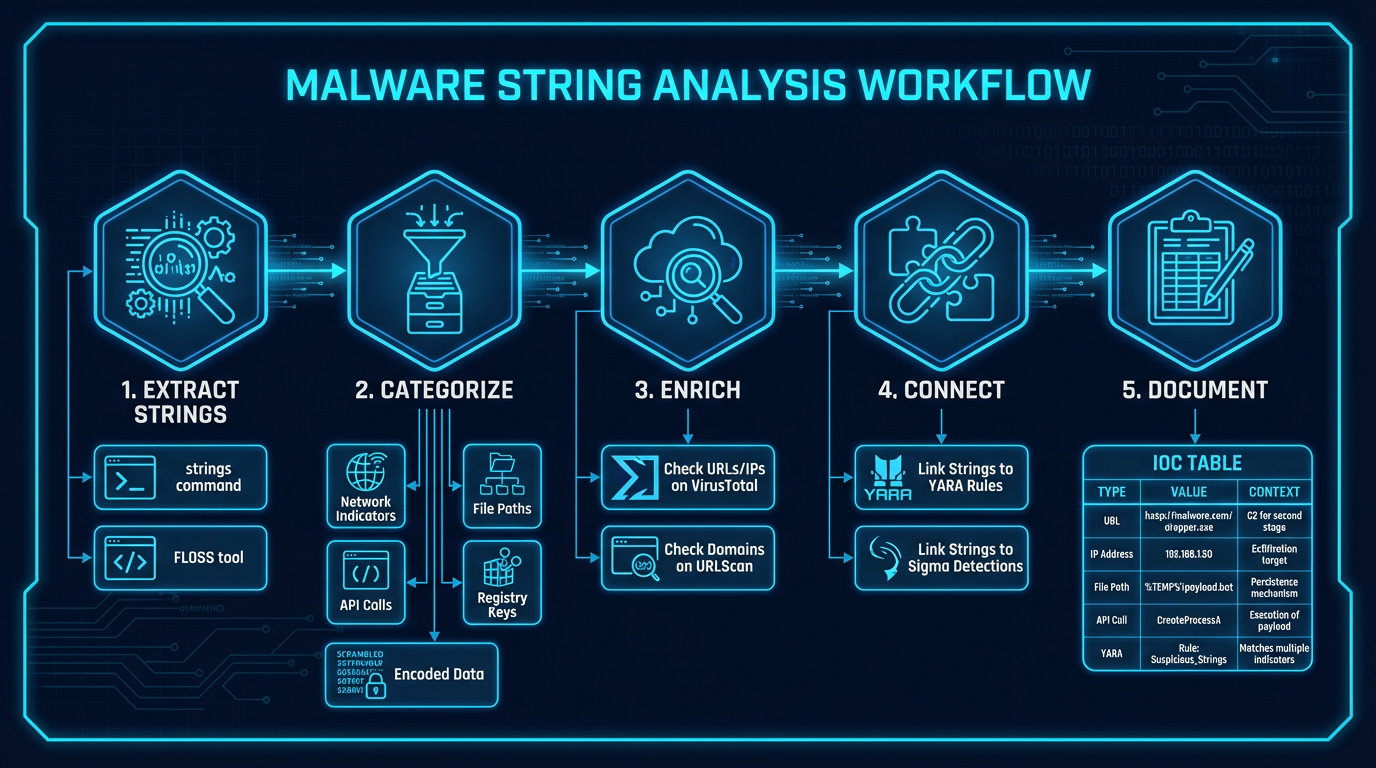

String Analysis Workflow

Efficient string analysis follows a structured workflow that moves from broad extraction to targeted investigation:

Click to enlarge

Step 1: Extract — Run strings (ASCII and UTF-16) and FLOSS on the binary. Pipe output to a file for reference.

strings -n 6 sample.exe > strings_ascii.txt
strings -n 6 -e l sample.exe > strings_utf16.txt
floss sample.exe > strings_floss.txt

Step 2: Filter noise — Remove common library strings, compiler artifacts, and Windows API boilerplate. Focus on unique, unusual, or contextually suspicious strings.

grep -iE "(http|ftp|\\.[a-z]{2,4}/|[0-9]+\.[0-9]+\.[0-9]+\.[0-9]+)" strings_ascii.txt

grep -iE "(CreateRemoteThread|VirtualAlloc|WriteProcessMemory|URLDownload)" strings_ascii.txt

grep -iE "(CurrentVersion\\\\Run|schtasks|cron)" strings_ascii.txt

Step 3: Categorize — Group findings into network IOCs, file system IOCs, behavioral indicators, and encoded data.

Step 4: Pivot — Take discovered IOCs and search for them in threat intelligence platforms. A URL found in strings can be checked in VirusTotal, MISP, or URLhaus. An API call pattern can be matched against known malware family profiles.

Step 5: Document — Record every finding with the offset where the string was found, the category, and its significance.

Connecting Static Analysis to Your Toolkit

Static analysis does not exist in isolation. Every finding connects to tools you already know:

Linux ELF Binaries: The Other Side

While PE is the dominant format on Windows, Linux malware uses the ELF (Executable and Linkable Format). The same static analysis principles apply:

file suspicious_binary
# suspicious_binary: ELF 64-bit LSB executable, x86-64, dynamically linked

readelf -h suspicious_binary     # ELF header (entry point, architecture, type)

readelf -S suspicious_binary     # section headers (similar to PE sections)

readelf -d suspicious_binary     # dynamic section (shared library dependencies)

strings -n 8 suspicious_binary | grep -iE "(http|/tmp/|/bin/|socket|connect)"

Key Takeaways

• Static analysis examines a binary without executing it — it is always the first step because it is safe, fast, and often reveals enough to classify a sample
• The PE format has a predictable structure: DOS header (MZ magic), PE header (compilation timestamp, entry point, characteristics), section table, and section data
• Section anomalies reveal packing and tampering: writable+executable sections, entry points outside .text, unusual section names, or entropy mismatches
• Compilation timestamps provide timeline intelligence but are trivially spoofed — always cross-reference with other metadata
• String extraction using strings and FLOSS is the highest-value static technique: URLs, IPs, API calls, registry keys, and encoded data all reveal malware intent
• Follow a structured string analysis workflow: extract → filter → categorize → pivot → document
• Every static finding connects to your existing toolkit: strings feed YARA rules, encoded data feeds CyberChef, network IOCs feed MISP, API patterns feed Velociraptor hunts
• ELF binaries on Linux follow the same analysis principles — use readelf, file, and strings instead of PE-specific tools

What's Next

You now know how to examine a binary's structure and extract strings — the "what is this file made of?" question. But two critical questions remain: "Have we seen this file before?" and "Is this file hiding something?" In Lesson 11.2, you will learn to hash files for reputation lookups, detect packers that compress and encrypt code, and analyze the Import Address Table to understand what Windows APIs a binary calls — the next layer of static analysis that separates commodity malware from sophisticated threats.
