Lab OS.1 — Windows Process Baseline

Lab Overview

The Scenario

Your SOC received an EDR alert flagging unusual network connections from a Windows server in the DMZ. Initial triage shows the server is reachable and responsive, but the alert details are vague — "suspicious outbound connection on a non-standard port." Your team lead asks you to perform a live process audit using Velociraptor.

The endpoint has been pre-configured with a Velociraptor client. Your task is to remotely collect process data, build a baseline of what's legitimate, and identify any processes that don't belong. Unknown to you at the start, the endpoint contains a planted C2 beacon disguised as a legitimate Windows binary running from an incorrect path, along with several other persistence artifacts you may encounter.

Part 1: Connecting to Velociraptor and Client Overview

Step 1 — Access the Velociraptor UI

Once your lab environment reaches READY status, click Open Lab to launch the Velociraptor web interface. Log in with the credentials displayed on the lab page.

After login you'll see the Velociraptor dashboard. On the left sidebar, click Clients (the monitor icon). You should see one connected client — the Windows endpoint.

Step 2 — Select the Client

Click the client hostname (e.g., WIN-SERVER-01) to open the client view. Note the following details:

• Client ID: The unique Velociraptor identifier (e.g., C.abc123...)
• OS: Windows (build number)
• Last Seen: Should be within the last few minutes (confirming live connection)
• Labels: Any labels applied to this client

Record these details — they form the header of your Process Baseline Report.

Part 2: Collecting Process Data

Step 3 — Run the Process Listing Artifact

Navigate to the Collected Artifacts tab for the client, then click New Collection (the + button). In the artifact search box, type:

Windows.System.Pslist

Select Windows.System.Pslist from the results. This artifact enumerates all running processes with their PID, PPID, name, executable path, command line, user, and creation time.

Click Launch to start the collection. Wait for the status to change to Completed (typically 5–15 seconds).

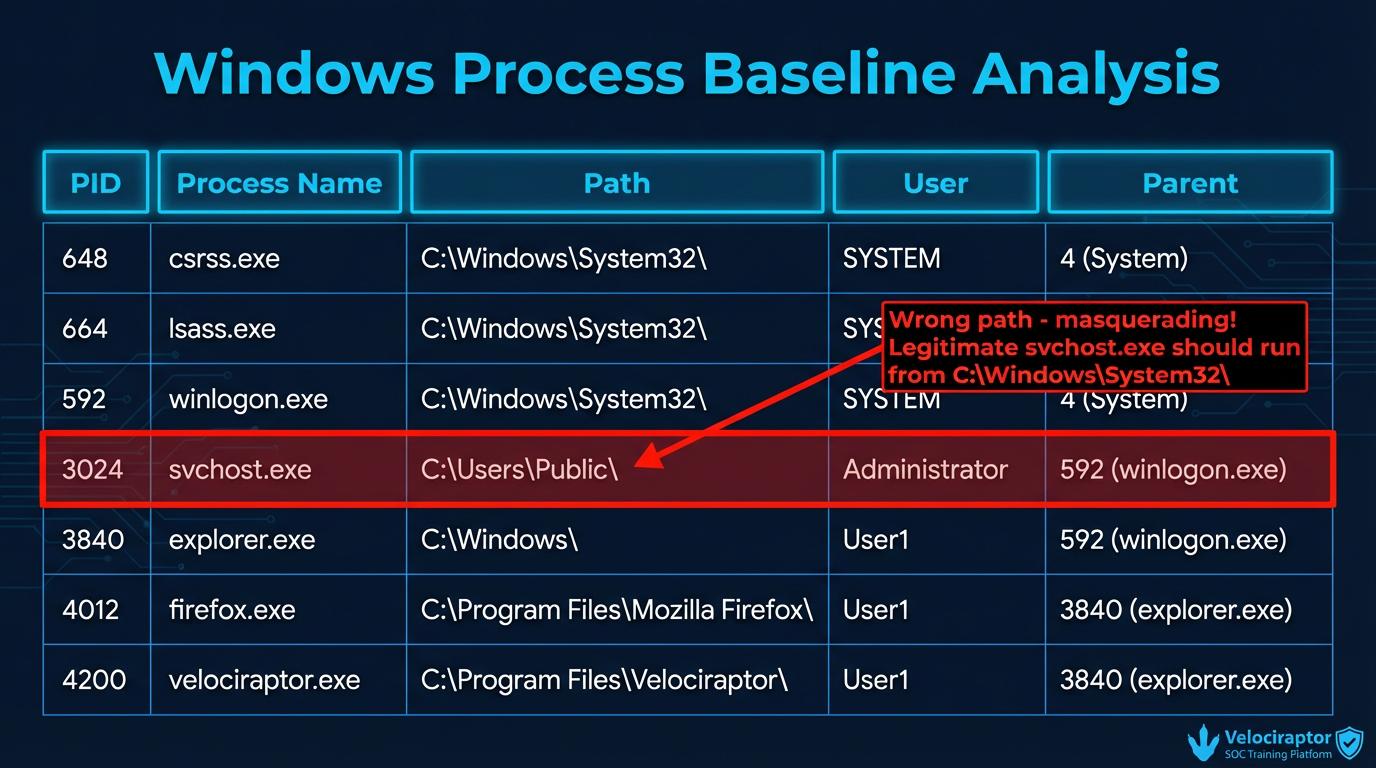

Step 4 — Review the Process List

Once the collection completes, click on the results. You'll see a table with columns including:

Record the total number of running processes. A typical Windows system has 60–120 processes. Significantly more or fewer may indicate issues.

Click to enlarge

Part 3: Building the Legitimate Process Baseline

Step 5 — Document Critical System Processes

Windows has a set of core system processes that ALWAYS run. For each one below, find it in your Pslist results and verify the expected properties:

For each process, record:

1. The actual path from your Pslist results
2. The actual parent PID and parent name
3. The actual username
4. Whether it matches the expected baseline

Step 6 — Identify the Anomalous Process

Carefully examine every svchost.exe entry in your results. Look for one that violates the baseline in one or more ways:

• Wrong path: Not running from C:\Windows\System32\
• Wrong parent: Parent is NOT services.exe
• Wrong user: Running under an unexpected account
• Suspicious command line: Unusual flags or arguments

Record the anomalous process details:

ANOMALOUS PROCESS DETECTED
───────────────────────────
Name:         [process name]
PID:          [pid]
PPID:         [parent pid]
Parent Name:  [parent process name]
Path:         [full executable path]
CommandLine:  [full command line]
Username:     [account]
CreateTime:   [timestamp]

BASELINE VIOLATIONS:
  [ ] Wrong path (expected C:\Windows\System32\)
  [ ] Wrong parent (expected services.exe)
  [ ] Wrong user account
  [ ] Suspicious command-line arguments
  [ ] Unusual creation time

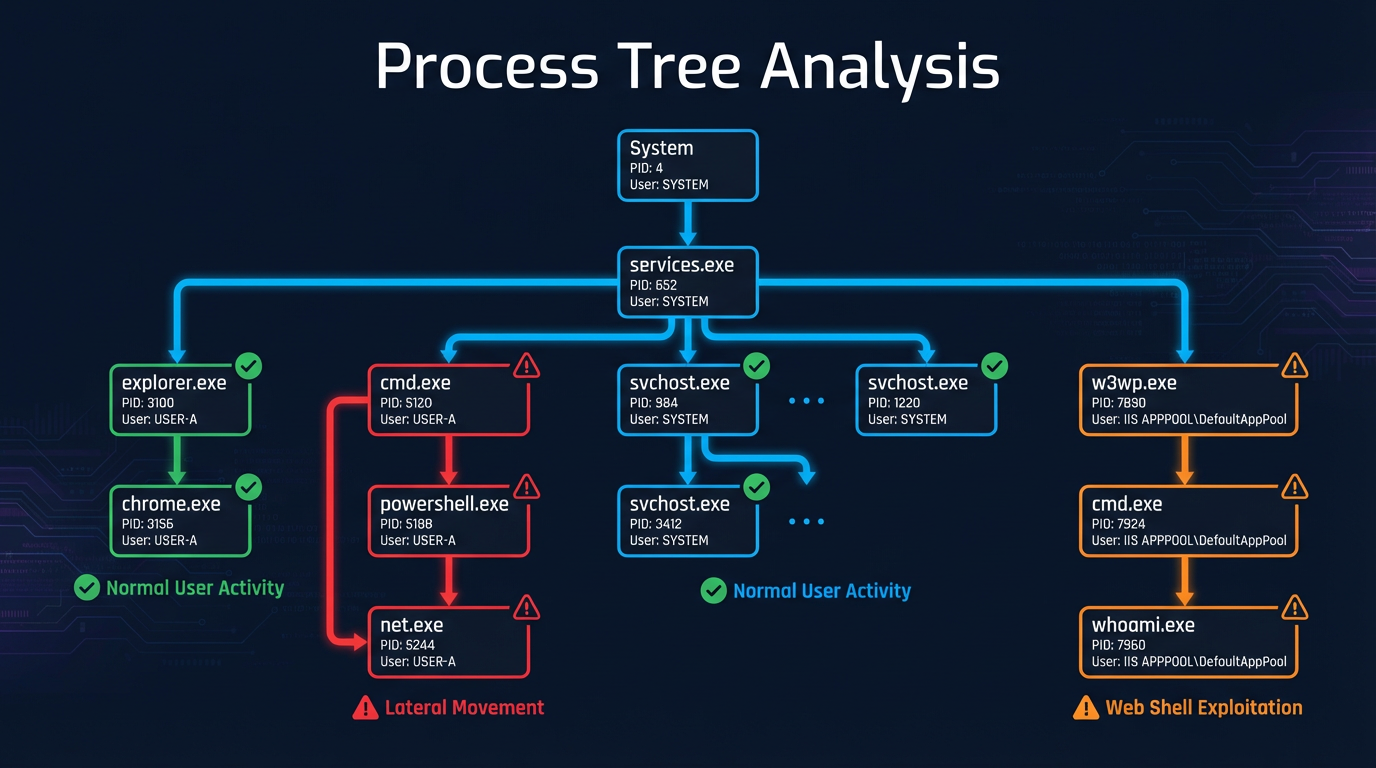

Part 4: Deep Dive — Process Tree Analysis

Step 7 — Collect Process Tree Data

To understand the full context, collect the process tree artifact. Click New Collection and search for:

Windows.System.Pslist

This time, check the Include process tree option if available, or alternatively collect:

Generic.System.Pstree

This shows parent-child relationships in a hierarchical view. Look for:

1. The suspicious process's children — is it spawning any child processes?
2. The suspicious process's parent chain — how did it get launched?
3. Any other processes launched around the same time — potentially related activity

Step 8 — Investigate Network Connections

The alert mentioned outbound connections. Collect network connection data:

Windows.Network.Netstat

Launch this artifact and examine the results. Look for:

• Connections from the suspicious PID to external IP addresses
• Non-standard ports (anything other than 80, 443, 53)
• ESTABLISHED connections (active communication)

Record any suspicious network connections:

SUSPICIOUS NETWORK CONNECTION
────────────────────────────
Process:    [name] (PID [pid])
Local:      [local IP]:[port]
Remote:     [remote IP]:[port]
State:      ESTABLISHED
Protocol:   TCP

Part 5: Collecting Additional Evidence

Step 9 — Hash the Suspicious Binary

To confirm the binary is malicious (or at least not a legitimate Microsoft file), collect the file hash:

Windows.Search.FileFinder

Configure the artifact to search for the exact path of the suspicious executable. The results will include MD5, SHA1, and SHA256 hashes.

Record the hashes. In a real investigation, you would submit these to VirusTotal or your threat intel platform.

Step 10 — Check Binary Signature

Collect the Authenticode signature information:

Windows.Detection.BinarySignature

Legitimate Microsoft binaries are digitally signed. An unsigned svchost.exe or one signed by an unknown publisher is a strong indicator of malware.

Click to enlarge

Part 6: Build Your Process Baseline Report

Compile all findings into a structured report:

PROCESS BASELINE REPORT
═══════════════════════
Endpoint:    [hostname]
Client ID:   [Velociraptor client ID]
Date:        [today's date]
Analyst:     [your name]

SECTION 1: System Overview
  Total Running Processes: [count]
  OS Version: [from client info]
  Last Boot: [if available]

SECTION 2: Critical Process Baseline (8 entries)
  [For each: Name | Path | Parent | User | Status: NORMAL/ANOMALOUS]

SECTION 3: Anomalous Process Details
  Name:       [suspicious process]
  Path:       [wrong path]
  Parent:     [unexpected parent]
  User:       [account]
  Network:    [C2 connection details]
  Hash:       [SHA256]
  Signature:  [signed/unsigned]

SECTION 4: Indicators of Compromise
  - File: [path to suspicious binary]
  - Hash: [SHA256]
  - Network: [C2 IP:port]
  - Technique: Process masquerading (T1036.005)

SECTION 5: Recommendations
  1. Isolate endpoint from network
  2. Preserve memory dump for forensic analysis
  3. Block C2 IP at firewall
  4. Scan all endpoints for same hash
  5. Investigate how the binary was delivered

Deliverable Checklist

Before completing the lab, ensure you have:

• Process Listing — Full Pslist collection with total process count documented
• Baseline Verification — All 8 critical system processes checked against expected properties
• Anomalous Process — Suspicious process identified with all baseline violations documented
• Process Tree — Parent-child relationships mapped for the suspicious process
• Network Connections — C2 connection details (remote IP, port, state) recorded
• File Hash — SHA256 of the suspicious binary collected
• Process Baseline Report — Complete report with all 5 sections filled in

What's Next

In Lab OS.2 — Registry & File System Hunt, you'll shift from process analysis to persistence hunting. Using Velociraptor's registry and file system artifacts, you'll hunt the same endpoint for registry Run key entries, suspicious files in web directories, and other persistence mechanisms the attacker left behind.
