Windows Forensic Artifacts

Windows Leaves a Trail of Everything

Windows is, from a forensic perspective, an extraordinarily verbose operating system. Every program execution, every file access, every folder browsed, every USB device connected, and every file deleted leaves traces in specific locations across the filesystem and registry. These traces persist long after the user — or attacker — believes they have covered their tracks.

The artifacts you will learn in this lesson are the same ones that KAPE collects during triage imaging (Lesson 9.2) and that you will analyze in Lab 9.3. They answer the core forensic questions:

Click to enlarge

Prefetch Files

Location: C:\Windows\Prefetch\*.pf Purpose: Windows Prefetch was designed to speed up application startup by caching information about recently executed programs. For forensic analysts, it is one of the most valuable execution evidence sources on Windows.

When a program executes, Windows creates (or updates) a Prefetch file that records:

The Prefetch filename format encodes both the executable name and a hash of its path:

MIMIKATZ.EXE-A91E1B0C.pf
│              │
│              └── Hash of the full executable path
└── Executable name (uppercase)

This means if an attacker runs the same tool from two different directories, two separate Prefetch files are created — each recording independent execution history.

# Example: attacker ran mimikatz from two locations
C:\Windows\Prefetch\MIMIKATZ.EXE-A91E1B0C.pf  (from C:\Users\Public\)
C:\Windows\Prefetch\MIMIKATZ.EXE-F3B2D1E7.pf  (from C:\Temp\tools\)

Parsing Prefetch with PECmd (Eric Zimmerman tool):

# Parse a single Prefetch file
PECmd.exe -f "C:\Windows\Prefetch\MIMIKATZ.EXE-A91E1B0C.pf"

# Parse all Prefetch files and output to CSV
PECmd.exe -d "C:\Windows\Prefetch" --csv "D:\Evidence\Parsed" --csvf prefetch.csv

Amcache.hve

Location: C:\Windows\AppCompat\Programs\Amcache.hve Purpose: Amcache is a registry hive that tracks application compatibility data. For forensic analysts, its killer feature is storing SHA1 hashes of executed programs along with their first execution timestamp.

Amcache records:

Why the SHA1 hash matters: An attacker can rename mimikatz.exe to svchost.exe to blend in. They can delete the binary after running it. But the Amcache records the SHA1 hash of the original file at the time it first executed. A VirusTotal lookup of that hash immediately reveals the true identity of the program — regardless of what name it was given on disk.

# Parse Amcache with AmcacheParser (Eric Zimmerman tool)
AmcacheParser.exe -f "C:\Windows\AppCompat\Programs\Amcache.hve" \
  --csv "D:\Evidence\Parsed" --csvf amcache.csv

ShimCache (AppCompatCache)

Location: HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\AppCompatCache Purpose: The Application Compatibility Cache (ShimCache) tracks executables that Windows has evaluated for compatibility shims. It records metadata about programs that were present on disk — and in many cases, this includes programs that were never actually executed.

ShimCache records:

ShimCache vs Amcache — complementary, not redundant:

# Parse ShimCache with AppCompatCacheParser (Eric Zimmerman tool)
AppCompatCacheParser.exe -f "C:\Windows\System32\config\SYSTEM" \
  --csv "D:\Evidence\Parsed" --csvf shimcache.csv

UserAssist

Location: NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\UserAssist\{GUID}\Count Purpose: UserAssist tracks GUI-based program executions — applications launched from the Start menu, desktop shortcuts, File Explorer, or Run dialog. It is stored per-user in each user's NTUSER.DAT registry hive.

UserAssist records:

The ROT13 encoding is trivially reversible — it was never intended as security, just obfuscation. Forensic tools decode it automatically:

Registry value (ROT13): P:\Hfref\Choyvp\zvzvxngm.rkr
Decoded:                 C:\Users\Public\mimikatz.exe

Why UserAssist matters for investigations: UserAssist proves that a specific user account interactively launched a program — not just that it ran as a system service or scheduled task. This is the difference between "mimikatz.exe ran on this machine" (Prefetch) and "the user jsmith launched mimikatz.exe from the desktop 3 times between February 10 and February 15" (UserAssist).

Shellbags

Location: NTUSER.DAT\Software\Microsoft\Windows\Shell\Bags and UsrClass.dat\Local Settings\Software\Microsoft\Windows\Shell\Bags Purpose: Shellbags record every folder a user has browsed in Windows Explorer — including view preferences (icon size, sort order, column layout). This creates a detailed history of filesystem navigation.

Shellbags are forensically powerful because they:

• Record folder access even if the folder no longer exists (deleted folders still appear in Shellbags)
• Record access to network shares (\\server\share), USB drives, and ZIP file contents
• Include timestamps for when each folder was first and last accessed
• Persist across reboots and are rarely cleared by users or attackers

Example Shellbag entries from an investigation:
Desktop\Evidence_Staging (first: 2026-02-14 02:14:00, last: 2026-02-15 14:30:00)
E:\USB_DRIVE\exfil_data (first: 2026-02-15 14:22:00, last: 2026-02-15 14:28:00)
\\10.0.1.50\C$\Users (first: 2026-02-15 13:45:00, last: 2026-02-15 13:52:00)

This tells the analyst: the attacker browsed a local staging folder, accessed an administrative share on another host (lateral movement evidence), and then browsed a USB drive labeled "exfil_data" — a clear data exfiltration pattern.

Jump Lists

Location: %APPDATA%\Microsoft\Windows\Recent\AutomaticDestinations\*.automaticDestinations-ms and %APPDATA%\Microsoft\Windows\Recent\CustomDestinations\*.customDestinations-ms Purpose: Jump Lists record recently accessed files on a per-application basis. Right-click any program on the taskbar, and the "Recent" list you see comes from Jump Lists.

Each Jump List entry contains:

Jump Lists are particularly valuable for tracking document access:

Application: Microsoft Word (AppID: a7bd71699cd38d1c)
Recent files:
  D:\Confidential\employee_salaries_2026.xlsx     (accessed 2026-02-15 09:12:00)
  C:\Users\jsmith\Desktop\resignation_letter.docx (accessed 2026-02-15 10:45:00)
  E:\USB\exfil\Q4_financial_report.pdf            (accessed 2026-02-15 14:23:00)

LNK Files (Shortcut Analysis)

Location: %APPDATA%\Microsoft\Windows\Recent\*.lnk and various other locations Purpose: Windows creates LNK (shortcut) files when a user opens a file. These shortcut files contain rich metadata about the target file — even after the target file has been deleted.

LNK files record:

# Parse LNK files with LECmd (Eric Zimmerman tool)
LECmd.exe -d "%APPDATA%\Microsoft\Windows\Recent" \
  --csv "D:\Evidence\Parsed" --csvf lnk_files.csv

Browser Artifacts

Web browsers store extensive forensic data across multiple databases and files:

Browser artifacts are critical for insider threat investigations, data exfiltration cases, and initial compromise analysis:

Browser history timeline from insider threat investigation:
09:15  mail.google.com/mail/  (personal Gmail — policy violation)
09:18  drive.google.com/drive/  (Google Drive accessed)
09:22  drive.google.com/upload  (file upload initiated)
09:23  Download: employee_database_export.csv (from internal HR portal)
09:25  drive.google.com/upload  (another upload — the CSV was exfiltrated)

Click to enlarge

USB Device History

Location: HKLM\SYSTEM\CurrentControlSet\Enum\USBSTOR Purpose: Every USB storage device ever connected to a Windows system is recorded in the USBSTOR registry key. This persists even after the device is disconnected and never reconnected.

USBSTOR records:

USBSTOR registry entry for a suspect's USB drive:
HKLM\SYSTEM\CurrentControlSet\Enum\USBSTOR\
  Disk&Ven_SanDisk&Prod_Cruzer_Blade&Rev_1.00\
    4C530012345678901234&0
    │
    └── Serial number: unique to this physical device

Cross-referencing the USB serial number with LNK files and Jump Lists creates a complete picture: this specific USB drive was connected at this time, this user browsed these folders on it (Shellbags), opened these files from it (LNK/Jump Lists), and the files had these sizes and timestamps.

Recycle Bin Analysis

Location: C:\$Recycle.Bin\{USER_SID}\* Purpose: When a user deletes a file, Windows moves it to the Recycle Bin rather than erasing it. Each deleted file creates two files:

The naming convention: $IXXXXXX.ext and $RXXXXXX.ext where XXXXXX is a random identifier and .ext matches the original file extension.

C:\$Recycle.Bin\S-1-5-21-1234567890-987654321-1122334455-1001\
  $IA1B2C3.exe   → metadata: original path, size, deletion time
  $RA1B2C3.exe   → the actual deleted file (recoverable)
  $ID4E5F6.docx  → metadata for a deleted Word document
  $RD4E5F6.docx  → the deleted Word document itself

Forensic value:

• The $I file proves a file existed at a specific path and was deleted at a specific time — even if the $R file has been emptied from the Recycle Bin
• The $R file contains the actual data — if the Recycle Bin has not been emptied, you can recover the complete file
• The user SID in the directory path identifies which user account deleted the file
• If the attacker "empties" the Recycle Bin, the $I and $R files are truly deleted — but they may still be recoverable from unallocated space in a full disk image

# Parse Recycle Bin with RBCmd (Eric Zimmerman tool)
RBCmd.exe -d "C:\$Recycle.Bin" --csv "D:\Evidence\Parsed" --csvf recyclebin.csv

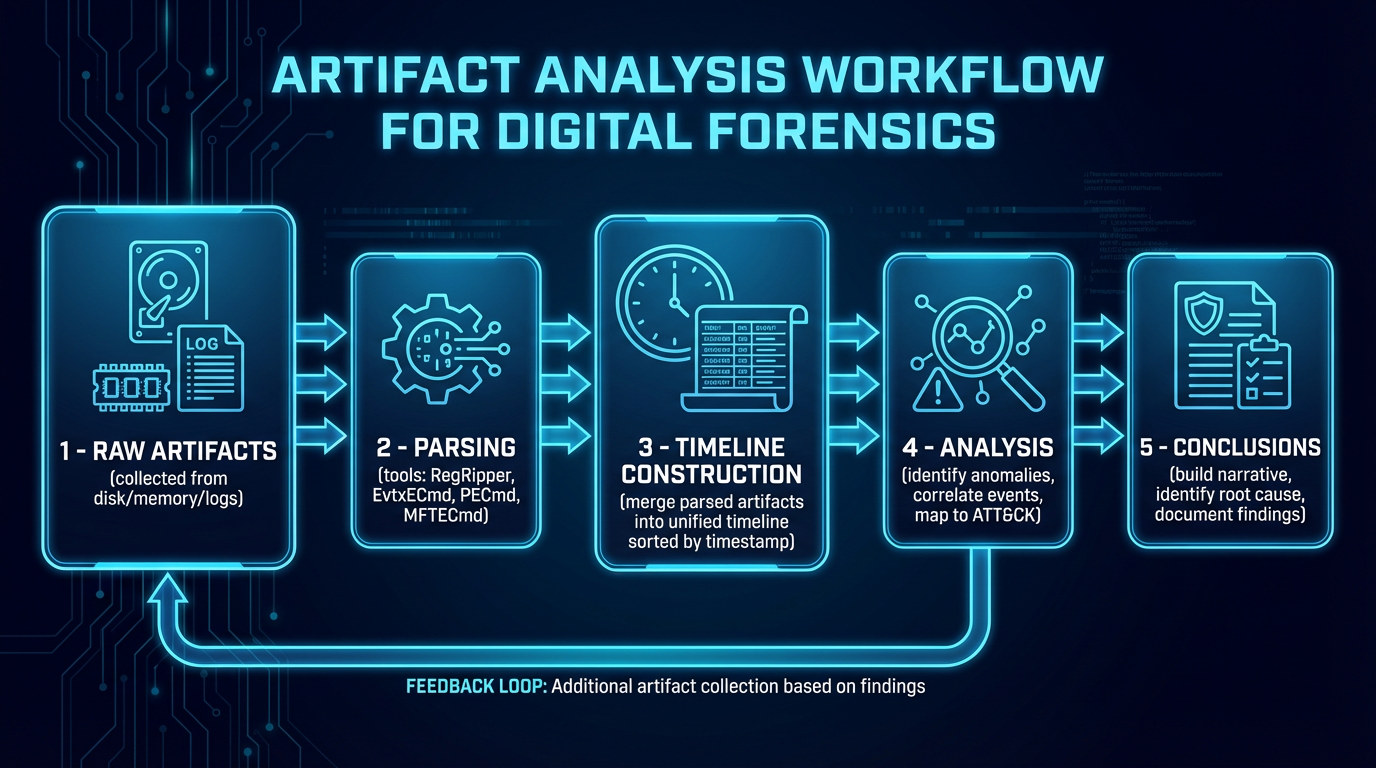

Putting It All Together: The Artifact Analysis Workflow

A single artifact rarely tells the full story. Forensic conclusions come from corroborating multiple artifact sources:

Investigation: Did user jsmith run mimikatz.exe?

Prefetch:    MIMIKATZ.EXE-A91E1B0C.pf exists
             Run count: 3, Last run: 2026-02-15 14:32:07
             Files loaded: C:\Users\Public\mimikatz.exe, sekurlse.dll

Amcache:     C:\Users\Public\mimikatz.exe
             SHA1: a1b2c3d4e5f6... (VirusTotal: 58/70 detect as Mimikatz)
             First execution: 2026-02-14 22:15:00

ShimCache:   C:\Users\Public\mimikatz.exe
             File modification time: 2026-02-14 21:00:00

UserAssist:  C:\Users\Public\mimikatz.exe (ROT13 decoded)
             Run count: 3, Last run: 2026-02-15 14:32:07
             Focus time: 45 seconds

Recycle Bin: $IA7B3C9.exe → C:\Users\Public\mimikatz.exe
             Deleted: 2026-02-15 14:33:00 (1 minute after last execution)

Timeline:    Feb 14 21:00 — mimikatz.exe placed on disk (ShimCache mod time)
             Feb 14 22:15 — First execution (Amcache)
             Feb 15 14:32 — Third execution (Prefetch + UserAssist)
             Feb 15 14:33 — Attacker deleted mimikatz.exe (Recycle Bin)

Five independent artifact sources corroborate the same conclusion. The attacker can delete the binary, empty the Recycle Bin, and clear event logs — but they cannot erase all five artifact types without specialized anti-forensic tools that themselves leave traces.

Key Takeaways

• Windows records program execution across multiple independent artifact sources — Prefetch, Amcache, ShimCache, and UserAssist each store different metadata, and an attacker must neutralize all of them to eliminate execution evidence
• Prefetch records run count, last 8 execution times, and files loaded during the first 10 seconds of execution — even after the program is deleted
• Amcache stores SHA1 hashes of executed programs, enabling immediate malware identification via VirusTotal even when the binary no longer exists on disk
• ShimCache may record files that were present on disk but never executed — useful for proving an attacker staged tools before running them
• UserAssist proves a specific user account interactively launched a program (ROT13-encoded, trivially decoded by forensic tools)
• Shellbags record every folder browsed in Explorer including network shares and deleted directories — invaluable for tracking lateral movement and data staging
• Jump Lists and LNK files record per-application file access with target path, timestamps, volume serial number, and machine name — evidence persists after file and device deletion
• USB device history (USBSTOR) records every USB storage device ever connected, with serial number, vendor, and timestamps that can be cross-referenced with LNK and Shellbag data
• Recycle Bin $I files preserve original path and deletion timestamp; $R files contain the actual deleted data — Shift+Delete bypasses this but does not eliminate other artifact traces
• Forensic conclusions require corroborating multiple artifacts — build chronological timelines from merged artifact data, not isolated findings

What's Next

You now know where Windows hides evidence and how to interpret each artifact type. Lesson 9.4 shifts to Linux Forensic Artifacts — the equivalent locations where Linux records command history, file access, authentication events, and persistence mechanisms. The tools differ but the methodology is the same: identify artifact sources, collect them, parse them, and build a corroborated timeline. In Lab 9.3, you will perform a full Windows forensic investigation — parsing Prefetch, Amcache, ShimCache, Shellbags, and Recycle Bin data to reconstruct an attacker's complete activity timeline on a compromised workstation.
