Velociraptor: Endpoint Investigation

What Is Velociraptor?

Velociraptor is an open-source endpoint detection, forensics, and response (EDR/DFIR) tool maintained by Rapid7. It gives SOC analysts and incident responders the ability to reach into any endpoint on the network — Windows, Linux, or macOS — and ask precise questions: What processes are running right now? Which files changed in the last hour? What network connections are active? Is there a scheduled task that should not exist? Where a SIEM like Wazuh collects logs that endpoints push to it, Velociraptor lets you pull data from endpoints on demand, at the exact moment you need it.

Velociraptor is written in Go and compiles to a single binary — roughly 20 MB. That binary serves as both the server and the client agent depending on its configuration. There are no heavy dependencies, no Java runtime, no database server to maintain. This simplicity is deliberate: incident responders need a tool they can deploy in minutes during an active breach, not one that requires a week of infrastructure planning.

Click to enlarge

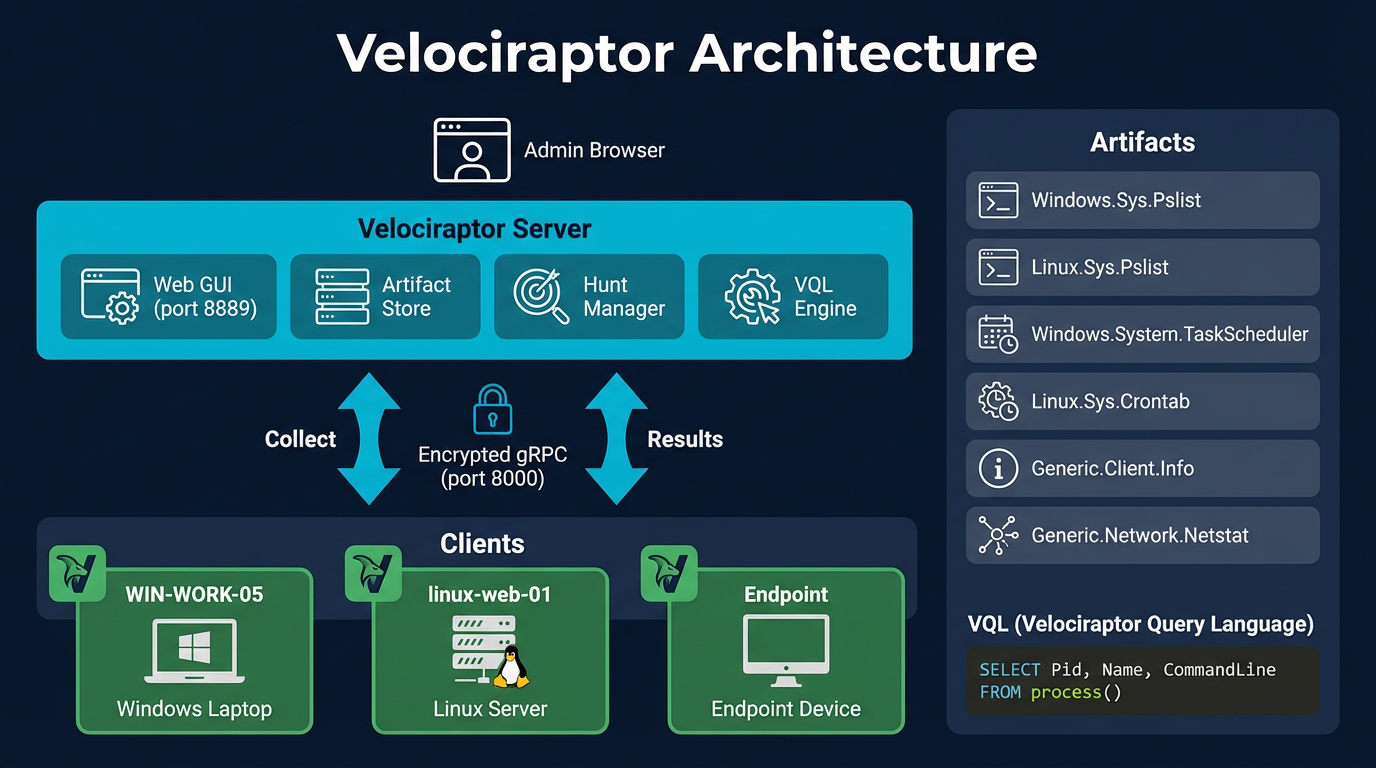

The architecture follows a server-client model:

• Server: Runs the Velociraptor backend, stores collected data, hosts the web GUI. In the lab, the server runs as a container on port 8889.
• Client agents: Lightweight processes installed on each endpoint. Agents do not maintain a persistent connection — they poll the server at regular intervals (default: every 10 seconds) checking for new instructions. When the server has a collection request, the agent picks it up, executes the query locally, and sends the results back.
• Web GUI: The analyst's interface. You log in to the server through a browser and manage everything — search for clients, run collections, review results, write VQL queries, launch hunts across the fleet.

This polling model is important for understanding how Velociraptor operates. The agent is not streaming data continuously to the server. It sits quietly on the endpoint, consuming minimal resources, until the server gives it something to do. When you launch a collection, the agent picks up the task on its next poll, executes the query locally on the endpoint, and sends back only the results. Raw data never leaves the endpoint unless the query specifically requests it. This keeps bandwidth low and gives you surgical precision — you collect exactly what you need, nothing more.

Velociraptor supports all three major operating systems. On Windows, it can query the registry, WMI, ETW event tracing, NTFS metadata (MFT, USN journal), prefetch files, and Windows Event Logs. On Linux, it queries /proc, /sys, crontabs, systemd services, audit logs, and file system metadata. On macOS, it covers launchd, plist files, Unified Logs, and the TCC privacy database. The same VQL query language works across all platforms, though many artifacts are OS-specific because the underlying data sources differ.

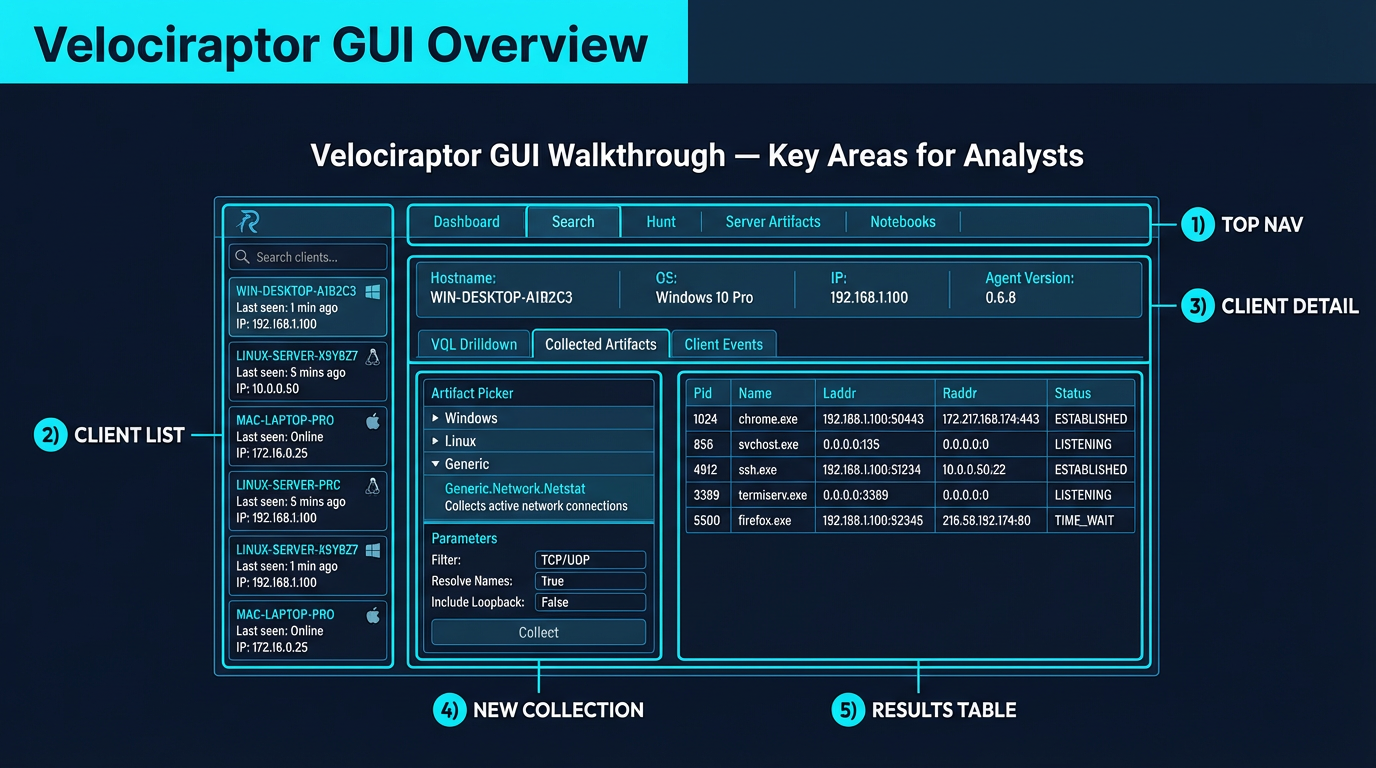

The Velociraptor GUI

The web GUI is where you will spend all your time as an analyst. It is a single-page application that communicates with the server backend via API calls. Everything you can do in the GUI, you can also do via VQL or the API — but the GUI is the fastest way to get oriented.

Click to enlarge

Dashboard

The landing page after login. The dashboard shows a summary of connected clients: total enrolled agents, how many are currently online (last check-in within the polling interval), and recent hunt activity. In the lab environment, you will see one or two clients — the Linux endpoint and optionally a Windows endpoint, depending on the lab profile. In a production environment, this page might show thousands of enrolled agents across multiple operating systems.

Search

The search bar at the top of the GUI lets you find clients by hostname, IP address, client ID, or label. Type a partial hostname and Velociraptor returns matching clients. In an investigation, this is your starting point — you get the hostname from your SIEM alert, search for it in Velociraptor, and click through to the client detail page. You can also apply labels to clients (e.g., "compromised", "needs-review", "critical-server") and search by label later.

Client Detail

When you click a client, you enter the client detail view. This is a multi-tabbed interface with everything you need to investigate that specific endpoint:

• Overview: Hostname, OS version, IP addresses, agent version, last check-in time, labels. A quick snapshot that tells you what the machine is and whether the agent is responsive.
• VQL Drilldown: Pre-configured queries that show common system information — installed software, OS details, hardware specs. This runs automatically when you open the client.
• Collected Artifacts: A list of every artifact collection that has been run against this client. Each collection shows the artifact name, when it was launched, its status (running, completed, error), and a link to view the results. This is the audit trail — you can see what other analysts have already collected.
• Events: Event monitoring artifacts that run continuously on the client, watching for specific activities in real time (file system changes, process creation, network connections). Event artifacts are the "always-on" component — they run persistently, unlike standard collections which are one-shot queries.

Hunt Manager

Hunts let you run the same artifact across all enrolled clients (or a filtered subset) simultaneously. Instead of collecting process lists one client at a time, a hunt runs Windows.Sys.Pslist across every Windows machine in your environment and aggregates the results in one view.

This is how you go from "one alert on one machine" to "is this happening anywhere else?" You find a suspicious scheduled task on WIN-SERVER-01, then launch a hunt running Windows.System.TaskScheduler across all Windows clients. If the same task appears on five other machines, you have just discovered lateral movement.

Server Artifacts

Server-side artifacts run on the Velociraptor server itself, not on endpoints. These handle housekeeping: importing third-party artifact packs, configuring event forwarding to your SIEM, managing user accounts, and running server-level VQL queries that aggregate data across clients.

Notebooks

Notebooks are the VQL playground. Each notebook is a collection of cells where you can write and execute VQL queries interactively, see results in real time, add markdown notes, and share the notebook with your team. Think of it as a Jupyter notebook for endpoint forensics.

Artifacts: Asking the Endpoint a Question

An artifact is the fundamental unit of work in Velociraptor. Every time you collect data from an endpoint, you are running an artifact. Every artifact is a VQL query packaged with YAML metadata — a name, description, author, parameter definitions, and column descriptions. The packaging makes the query reusable, self-documenting, and shareable across teams and organizations.

Velociraptor ships with hundreds of built-in artifacts organized by operating system and function. Here are the ones you will use most frequently as a SOC analyst:

Windows Artifacts

Linux Artifacts

Generic Artifacts (Cross-Platform)

Running a Collection

The workflow for collecting data from a single client:

1. Search for the client by hostname or IP
2. Click the client to open the detail view
3. Click "New Collection" (the + button on the Collected Artifacts tab)
4. Select the artifact — type the name in the search box (e.g., "Pslist") and pick the one for the correct OS
5. Configure parameters — most artifacts have sensible defaults, but you can filter by PID, process name, path, or other criteria
6. Launch the collection
7. Review results — the collection appears in the Collected Artifacts list with a status indicator. Click it to see the output table. Results are displayed as structured rows and columns that you can sort, filter, and export

The collection executes on the endpoint — the agent picks up the request, runs the VQL query against local system data, and streams the results back to the server. For most artifacts, results appear within seconds. Heavier collections (full disk scans, memory analysis) can take minutes.

VQL: Velociraptor Query Language

VQL is Velociraptor's query language. If you know SQL, VQL will feel familiar — it uses a SELECT ... FROM ... WHERE structure. But where SQL queries database tables, VQL queries plugins — functions that pull data from the operating system, parse files, make network requests, or transform data.

Basic Syntax

SELECT column1, column2
FROM plugin(arg1=value1, arg2=value2)
WHERE condition
ORDER BY column1
LIMIT 100

Key Plugins

Practical VQL Examples

List all running processes (Linux or Windows):

SELECT Pid, Ppid, Name, CommandLine, Username
FROM pslist()

Find processes running from /tmp (Linux — common malware staging location):

SELECT Pid, Name, CommandLine, Exe
FROM pslist()
WHERE Exe =~ '/tmp/'

Find processes running from unusual Windows paths:

SELECT Pid, Name, CommandLine, Exe
FROM pslist()
WHERE Exe =~ '(Temp|AppData|Downloads|ProgramData)'
  AND NOT Exe =~ 'Microsoft'

Find all listening TCP ports:

SELECT Pid, Name, Laddr, Status
FROM netstat()
WHERE Status = 'LISTEN'

Search for recently modified files in a directory (last 24 hours):

SELECT FullPath, Size, Mtime
FROM glob(globs='/var/log/**')
WHERE Mtime > now() - 86400
ORDER BY Mtime DESC

Find files matching a suspicious pattern on Windows:

SELECT FullPath, Size, Mtime
FROM glob(globs='C:/Users/*/AppData/Local/Temp/*.exe')

VQL is the power behind every artifact. When the built-in artifacts do not answer your specific question, you write VQL directly in a notebook. Need to find all processes that have network connections to external IPs? Write a VQL query that joins pslist() with netstat(). Need to search every user's home directory for files created in the last hour? Write a glob() query with a time filter. VQL gives you the flexibility to ask any question the operating system can answer.

Your First Investigation Workflow

Let us walk through a structured endpoint investigation. This is the same workflow you will follow in the lab and the same workflow you would use in production when a SIEM alert points you to a specific host.

Step 1: Search for the client. You receive a Wazuh alert about suspicious activity on a host. Open Velociraptor's GUI and type the hostname in the search bar. Click the matching client to enter the detail view.

Step 2: Run Generic.Client.Info. This is always your first collection — it confirms basic system details: operating system, hostname, IP addresses, agent version, uptime. This tells you what you are dealing with. Is this a Windows server? A Linux web host? An employee laptop? The answer determines which artifacts you will run next.

Step 3: Review system details. Check the OS version, installed patches (if visible), IP configuration, and agent health. Note the last check-in time — if the agent last checked in hours ago, the machine might be powered off, disconnected, or the agent might have been killed by an attacker.

Step 4: Run the process listing artifact. On Linux, run Linux.Sys.Pslist. On Windows, run Windows.Sys.Pslist. This gives you a complete snapshot of every process running at the moment of collection: PIDs, parent PIDs, command lines, users, executable paths, and memory usage.

Step 5: Review the process list. Scan for anomalies:

• Processes running from unusual paths (/tmp, /dev/shm, C:\Users\*\AppData\Local\Temp)
• Processes with obfuscated or encoded command lines (base64 strings, random-looking names)
• Processes running as root/SYSTEM that should not be (a web shell process spawned by the web server)
• Child processes of unexpected parents (cmd.exe spawned by a Word process = macro execution)
• Processes with high memory or CPU that do not match normal workload

Step 6: Run network connections. Use Linux.Network.Netstat or Windows.Network.Netstat. This shows every active TCP/UDP connection, including the owning PID.

Step 7: Correlate processes with connections. This is where the investigation starts to tell a story. Match the PIDs from the process list with the PIDs in the network connections. A process named svchost.exe with an outbound connection to an IP in Russia is suspicious. A process named /tmp/.cache with a LISTEN port is almost certainly malicious. The combination of what the process is and what it is connected to is the core of endpoint-based threat detection.

Step 8: Deepen as needed. Based on what you find, run additional artifacts:

• Suspicious scheduled task? Run Windows.System.TaskScheduler or Linux.Sys.Crontab
• Unknown binary in /tmp? Use glob() to check creation time, then read_file() or hash the file
• Persistence mechanism? Run Windows.Sys.StartupItems or check Linux.Sys.Services

Each artifact answers a question, and each answer generates the next question. That iterative loop — collect, analyze, pivot — is what makes Velociraptor a forensic investigation tool rather than just a data collector.

What's Next

You now understand Velociraptor's architecture, GUI, artifact system, and VQL fundamentals. You know how to find a client, collect data, read results, and correlate processes with network connections. In Lesson 6.3: Process Analysis, you will go deeper into the process investigation techniques that separate normal system activity from attacker behavior — parent-child process relationships, process injection indicators, memory analysis, and behavioral patterns that reveal post-exploitation tools like Cobalt Strike, Metasploit, and living-off-the-land binaries (LOLBins). Process analysis is where you turn raw endpoint data into confident detection decisions.
