Network Forensics: File Extraction & C2 Detection

In the previous lessons you learned to read packets, write filters, and follow streams. Now you put those skills to work on the two questions that define network forensics: what did the attacker transfer, and how did they maintain control?

File extraction pulls malware samples, exfiltrated documents, and staging payloads directly out of PCAPs. C2 detection reveals the command channel the attacker uses to persist in the environment. Together, they transform raw packet captures into actionable evidence that drives containment decisions.

File Extraction from Packet Captures

Every file that crosses the network — malware droppers, exfiltrated databases, staging scripts — exists inside the PCAP as a sequence of reassembled TCP segments. Your job is to carve those files back out.

Wireshark Export Objects

Wireshark's built-in extraction handles the most common protocols with zero configuration.

Navigate to File → Export Objects and select the protocol:

For HTTP extraction, Wireshark reassembles the TCP stream, strips HTTP headers, and writes the raw file content to disk. You get the original filename, content type, and the hostname it was downloaded from.

File → Export Objects → HTTP
Select the suspicious file → Save
Right-click entry → Save All (exports every HTTP object in the PCAP)

NetworkMiner — Automated Extraction

NetworkMiner takes a different approach: load a PCAP and it automatically extracts every file, image, credential, and session it can find. It excels at bulk extraction where Wireshark requires manual protocol selection.

# Linux
mono /opt/NetworkMiner/NetworkMiner.exe capture.pcap

# Windows
NetworkMiner.exe → File → Open → capture.pcap

NetworkMiner organizes results into tabs: Files, Images, Messages, Credentials, Sessions, DNS. The Files tab shows every extracted object with metadata — filename, source/destination IP, protocol, size, and MD5 hash. This hash-on-extract capability is critical for chain-of-custody documentation.

Command-Line Carving: foremost and binwalk

When protocol-aware extraction fails — corrupted streams, custom protocols, or partially captured transfers — file carving recovers files based on their binary signatures (magic bytes) rather than protocol structure.

foremost scans raw data for known file headers and footers:

foremost -t exe,pdf,zip,png,doc -i capture.pcap -o carved_files/
ls -la carved_files/

foremost creates subdirectories by file type. It works on raw PCAPs, disk images, or any binary blob. The -t flag specifies which file types to carve.

binwalk identifies embedded files and compressed archives:

binwalk -e suspicious_payload.bin
binwalk --dd='.*' captured_stream.raw

binwalk is particularly effective against staged payloads where attackers embed executables inside images, append archives to legitimate files, or use custom packing.

Command & Control Beacon Detection

C2 frameworks — Cobalt Strike, Sliver, Metasploit, Havoc — all share a fundamental network behavior: the implant periodically calls home to receive commands. This beaconing pattern is the single most reliable network indicator of compromise.

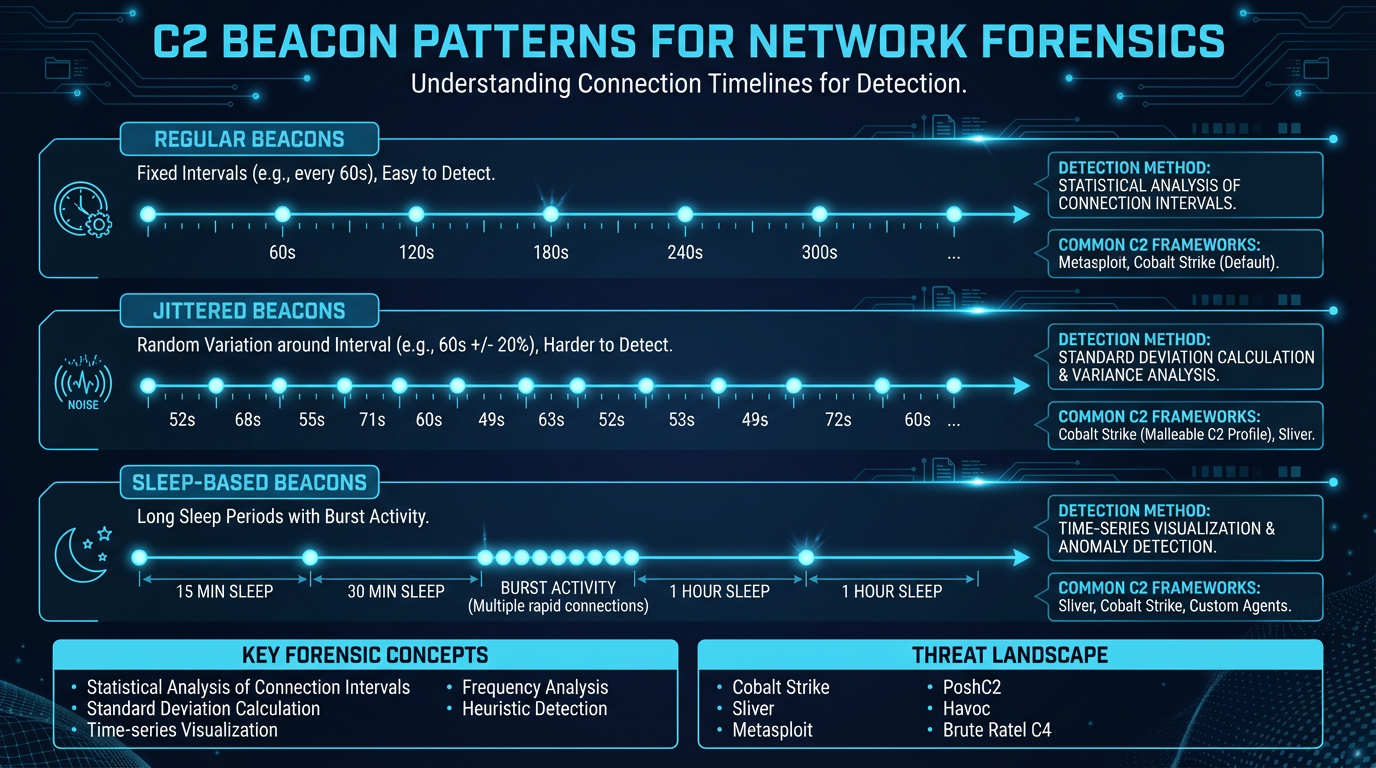

Beacon Anatomy

A C2 beacon follows a predictable cycle:

1. Sleep — implant waits a configured interval (e.g., 60 seconds)
2. Check-in — implant sends an HTTP/HTTPS/DNS request to the C2 server
3. Task retrieval — server responds with commands (or an empty response if no tasks)
4. Task execution — implant runs the command and sends results on the next check-in

Click to enlarge

Detecting Regular Intervals

The most basic beacon detection is statistical: measure the time delta between connections from an internal host to the same external destination.

# tshark: extract connection timestamps to a specific destination
tshark -r capture.pcap -Y "ip.dst == 203.0.113.50 && tcp.flags.syn == 1" \
  -T fields -e frame.time_epoch | awk '{
    if (NR > 1) { delta = $1 - prev; print delta }
    prev = $1
  }'

A legitimate web browsing session produces irregular deltas: 0.2s, 45s, 3s, 120s, 0.8s. A C2 beacon produces deltas clustered around the sleep interval: 60.1s, 59.8s, 60.3s, 59.9s.

Key metrics for beacon analysis:

Jitter Analysis

Sophisticated C2 operators configure jitter — random variation added to the sleep timer — to evade simple interval-based detection. Cobalt Strike, for example, defaults to 0% jitter but operators commonly set 10-50%.

A 60-second beacon with 20% jitter produces intervals between 48 and 72 seconds. The distribution remains tight enough to detect statistically but irregular enough to defeat simple threshold rules.

import statistics

intervals = [61.2, 58.4, 63.1, 57.9, 62.5, 59.1, 60.8, 58.2, 63.4, 61.0]

mean = statistics.mean(intervals)
stdev = statistics.stdev(intervals)
jitter_pct = ((max(intervals) - min(intervals)) / mean) * 100

print(f"Mean: {mean:.1f}s, StdDev: {stdev:.1f}s, Jitter: {jitter_pct:.1f}%")
# Mean: 60.6s, StdDev: 1.9s, Jitter: 9.1%

Sleep Timer Fingerprinting

Common C2 frameworks use default sleep intervals that analysts can fingerprint:

DNS Forensics

DNS is the attacker's favorite covert channel. Every network allows DNS traffic. Most organizations do not inspect it beyond basic reputation checks. Attackers exploit this blind spot for tunneling, exfiltration, and command delivery.

DNS Tunneling Detection

DNS tunneling encodes data in DNS queries and responses — typically as Base64 or hex-encoded subdomains. Tools like iodine, dnscat2, and dns2tcp use this technique for full bidirectional communication over DNS.

Indicators of DNS tunneling:

# Normal DNS query
www.example.com                              → 15 characters

# DNS tunnel query (dnscat2)
a]kd9f3kLmNp2xRt4vWy.tunnel.evil.com       → 43 characters

# DNS tunnel query (iodine)
t5sAAAAAHBrZy1maWxlLnR4dA.t.evil.com       → 41 characters

# tshark: find DNS queries with unusually long subdomains
tshark -r capture.pcap -Y "dns.qry.name.len > 40 && dns.flags.response == 0" \
  -T fields -e frame.time -e ip.src -e dns.qry.name -e dns.qry.type

# tshark: count DNS queries per source IP (find high-volume talkers)
tshark -r capture.pcap -Y "dns.flags.response == 0" \
  -T fields -e ip.src | sort | uniq -c | sort -rn | head -20

Domain Generation Algorithms (DGAs)

DGAs generate hundreds or thousands of pseudo-random domain names daily. The malware queries these domains until it finds one the attacker has registered, establishing the C2 channel. This makes domain-based blocklisting nearly impossible.

DGA domain characteristics:

# Human-registered domains
google.com, microsoft.com, github.io

# DGA-generated domains (Conficker-style)
mphtfrynqxwz.net, kldsvboqjztm.com, xnrpfhwaecby.org

# DGA-generated domains (dictionary-based)
bright-ocean-castle.com, red-forest-path.net

Detection focuses on entropy analysis and NXDomain response rates. DGA domains produce a high ratio of NXDOMAIN (non-existent domain) responses because the attacker only registers a small fraction of the generated domains.

# Count NXDomain responses per querying host
tshark -r capture.pcap -Y "dns.flags.rcode == 3" \
  -T fields -e ip.dst | sort | uniq -c | sort -rn | head -10

TXT Record and Unusual Record Type Abuse

Attackers prefer TXT records for DNS-based C2 because TXT records can carry up to 65,535 bytes of arbitrary text data — far more than the 4 bytes of an A record. Other abused types include NULL records and CNAME chains.

# Find all TXT record queries (potential data channel)
tshark -r capture.pcap -Y "dns.qry.type == 16" \
  -T fields -e frame.time -e ip.src -e dns.qry.name

# Find NULL record queries (rare in legitimate traffic)
tshark -r capture.pcap -Y "dns.qry.type == 10" \
  -T fields -e frame.time -e ip.src -e dns.qry.name

HTTPS/TLS Analysis

Encryption blinds traditional packet inspection, but TLS metadata — the handshake, certificates, and fingerprints — reveals more than attackers expect.

JA3/JA3S Fingerprinting

JA3 generates an MD5 hash from the TLS Client Hello parameters (TLS version, cipher suites, extensions, elliptic curves, elliptic curve point formats). Every TLS client — browser, malware implant, curl — produces a characteristic JA3 hash.

JA3 hash components:
  TLSVersion,Ciphers,Extensions,EllipticCurves,EllipticCurvePointFormats

Example:
  769,47-53-5-10-49161-49162-49171-49172-50-56-19-4,0-10-11,23-24-25,0
  → MD5 → e7d705a3286e19ea42f587b344ee6865

JA3S does the same for the Server Hello. The JA3 + JA3S pair uniquely identifies a client-server TLS negotiation. Cobalt Strike, Metasploit, and other frameworks produce known JA3 hashes that differ from legitimate browsers.

# Wireshark display filter for TLS Client Hello
tls.handshake.type == 1

# Zeek: extract JA3 hashes (if Zeek is available)
zeek -r capture.pcap policy/protocols/ssl/ja3.zeek
cat ssl.log | zeek-cut ja3 server_name

Certificate Analysis

Self-signed certificates, short validity periods, and generic subject fields are hallmarks of hastily configured C2 infrastructure.

# Extract certificate details from a PCAP
tshark -r capture.pcap -Y "tls.handshake.type == 11" \
  -T fields -e ip.dst -e tls.handshake.certificate \
  -e x509sat.utf8String -e x509sat.printableString

Red flags in TLS certificates:

SNI Inspection

Server Name Indication (SNI) is sent in plaintext during the TLS Client Hello, revealing the intended destination hostname even when the payload is encrypted.

# Extract SNI values
tshark -r capture.pcap -Y "tls.handshake.type == 1" \
  -T fields -e ip.src -e ip.dst -e tls.handshake.extensions_server_name

Cross-reference SNI values against threat intelligence feeds. Look for SNI values that do not match the destination IP's reverse DNS, which may indicate domain fronting — a technique where the attacker routes C2 traffic through legitimate CDN infrastructure.

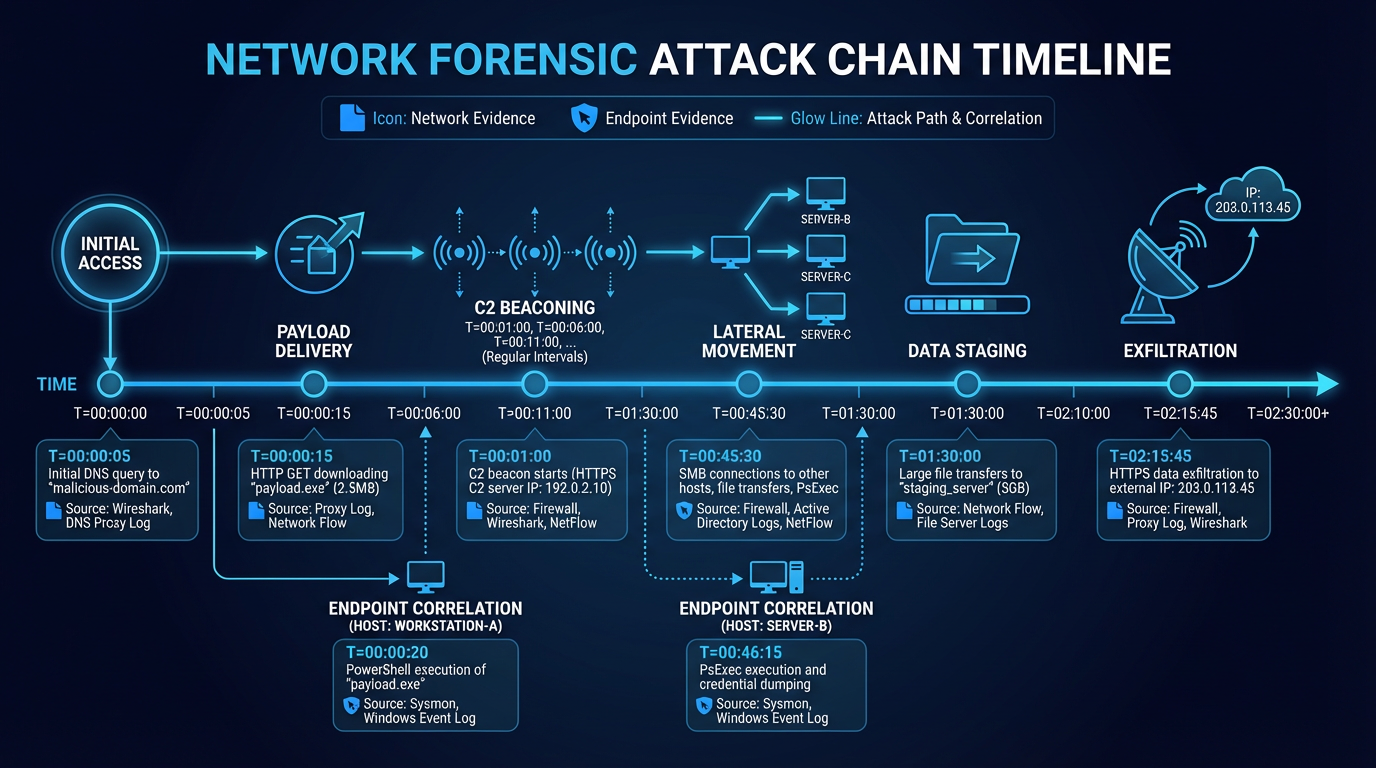

Building Network Forensic Timelines

Individual findings — an extracted file, a beacon pattern, a tunneling session — become evidence only when assembled into a chronological narrative. The network forensic timeline is your primary deliverable.

Click to enlarge

Timeline Construction Process

Step 1: Anchor events. Identify the earliest and latest indicators in the PCAP. The first C2 beacon marks initial access time. The last data transfer marks the end of active operations.

Step 2: Map connections to phases. Categorize each significant network event using the kill chain or ATT&CK framework:

Step 3: Correlate with endpoint data. Every network event has a corresponding endpoint event. The HTTP download of malware corresponds to a process creation on the endpoint. The C2 beacon corresponds to a persistent scheduled task or service. Cross-reference:

Network: 10:14:32 — HTTP GET /update.exe from 203.0.113.50 (4.2 MB)
Endpoint: 10:14:33 — svchost.exe spawns update.exe (PID 4872)

Network: 10:14:45 — First TLS connection to 198.51.100.25:443
Endpoint: 10:14:44 — update.exe creates scheduled task "WindowsUpdate"

Network: 10:15:00 — DNS TXT query to data.evil.com (1.2 KB response)
Endpoint: 10:14:58 — update.exe reads C:\Users\admin\Documents\*.xlsx

Step 4: Document gaps. Note where the PCAP does not cover — periods before capture started, encrypted sessions you cannot decrypt, or traffic that traversed a different network path. Gaps are as important as evidence because they define the limits of your conclusions.

Correlating Network and Endpoint Evidence

Network forensics alone tells half the story. A beacon to a C2 server is suspicious; a beacon from a process running as SYSTEM from a known-compromised host confirmed via Velociraptor is proof of compromise.

Correlation Points

PowerShell Network Correlation (Windows)

# Find processes with active connections to a suspected C2 IP
Get-NetTCPConnection -RemoteAddress "203.0.113.50" |
  Select-Object LocalPort, RemotePort, State, OwningProcess,
    @{N='Process';E={(Get-Process -Id $_.OwningProcess).ProcessName}}

# Get file hash of the suspicious process
Get-Process -Id 4872 | Select-Object -ExpandProperty Path | Get-FileHash -Algorithm SHA256

Linux Network Correlation

# Find processes connected to suspected C2 IP
ss -tnp | grep "203.0.113.50"

# Get process details and file hash
ls -la /proc/<PID>/exe
sha256sum /proc/<PID>/exe
cat /proc/<PID>/cmdline | tr '\0' ' '

# Check process start time
stat /proc/<PID>/exe

Documenting Network-Based Findings

Network evidence is volatile and contextual — without proper documentation at the time of analysis, critical details are lost. Every finding needs enough detail for another analyst (or a legal team) to independently verify your conclusions.

Evidence Documentation Template

For each significant network finding, record:

FINDING: [Brief description]
PCAP: [Filename, SHA-256 hash, time range]
FILTER: [Exact Wireshark display filter to reproduce]
EVIDENCE:
  - Timestamp: [UTC]
  - Source: [IP:port]
  - Destination: [IP:port]
  - Protocol: [HTTP/DNS/TLS/etc.]
  - Details: [Specific observation]
EXTRACTED FILES:
  - Filename: [name]
  - SHA-256: [hash]
  - Size: [bytes]
  - VirusTotal: [detection ratio or "not submitted"]
CONCLUSION: [What this evidence proves]
CONFIDENCE: [High/Medium/Low]
LIMITATIONS: [What this evidence does NOT prove]

Key Takeaways

• File extraction from PCAPs uses three approaches: Wireshark Export Objects (protocol-aware), NetworkMiner (automated bulk), and foremost/binwalk (binary carving) — use all three for complete coverage
• C2 beacon detection relies on statistical analysis of connection intervals — low standard deviation relative to the mean is the primary indicator, with jitter analysis distinguishing framework configurations
• DNS tunneling is identified by long subdomain queries, high query volume, high entropy labels, TXT/NULL record abuse, and extreme unique-subdomain counts
• DGA detection combines entropy analysis with NXDomain response rate monitoring — a host generating dozens of NXDomain responses per minute to random domains is almost certainly infected
• JA3/JA3S fingerprinting identifies C2 implants through their TLS handshake characteristics, even when payload content is encrypted
• Certificate analysis catches hastily configured C2 infrastructure through self-signed certs, short validity periods, and generic subject fields
• Network forensic timelines are the primary deliverable — anchor events, map to kill chain phases, correlate with endpoint data, and document gaps
• Every extracted file must be immediately hashed (SHA-256) and every PCAP must be hashed before and after analysis for chain-of-custody integrity
• Network evidence alone proves network activity occurred — correlation with endpoint telemetry is required to prove what happened on the host

What's Next

You have built a complete network forensics toolkit — from packet-level analysis through file extraction, C2 detection, and evidence correlation. In Module 6: Endpoint Visibility & Investigation, you shift your focus from the wire to the endpoint itself. You will learn how to use Velociraptor for live endpoint interrogation, investigate running processes, hunt for persistence mechanisms, and combine the network evidence you have gathered here with host-based forensic artifacts to build complete incident narratives.
